GX Flow Centers

Description

When properly installed, the GX flowcenters self-regulate, using the minimum power necessary for supplying the optimal flow rate to each running heat pump (regardless of size or proximity to flow center). For additional Information refer to our Knowledge Base.

Features:

• Electronically Commutated Motor (ECM) Variable Speed Pump Technology

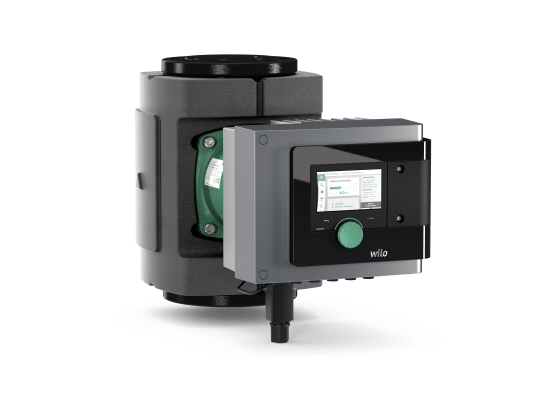

• Utilizes the State-of-the-Art WILO Stratos MAXO ECM Pumps
• Lowest Energy Consumption per Ton of Heat Pump Capacity
• “Pressurizable” Flow Center that operates with the reliability of a non-pressurized flowcenter
• Air Separation Chamber
• Sightglass to easily Fill & Maintain at proper level
• 3 Year Limited Warranty
• Accessories
  • GV Zone Manager (GVZM), a cost-effective way to further reduce energy consumption when no heat pumps are running.

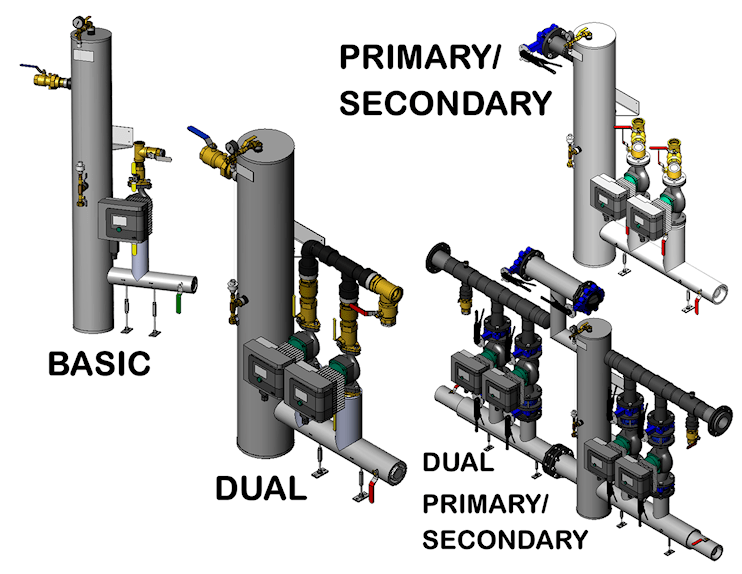

GX Basic

Our “B” Series is a single pump that will circulate fluid through the heat pumps and through the loop field in series.

GX Dual

Our “D” Series operates like the Basic but with a second pump in parallel for extra flow and/or reliability.

GX Primary-Secondary

Our “P” series flow centers are designed for applications where it is advantageous to have 1 pump dedicated to loop field fluid circulation, and a 2nd pump dedicated to heat pump source side fluid circulation. When properly installed the Primary/Secondary is capable of dealing with high pressure drop systems while using the minimum power necessary for supplying the optimal flow to the loop field, & each running heat pump.

GX Dual-Primary/Secondary

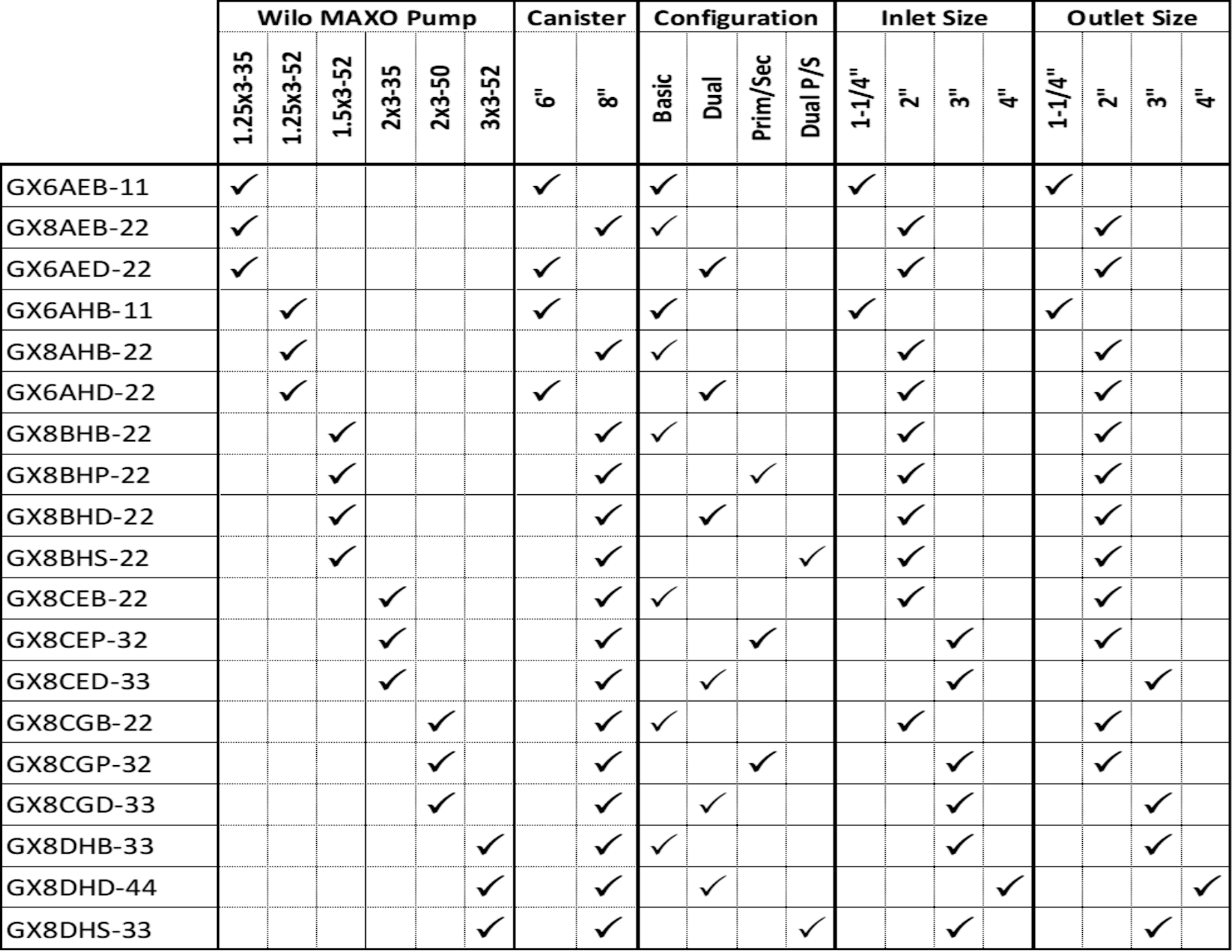

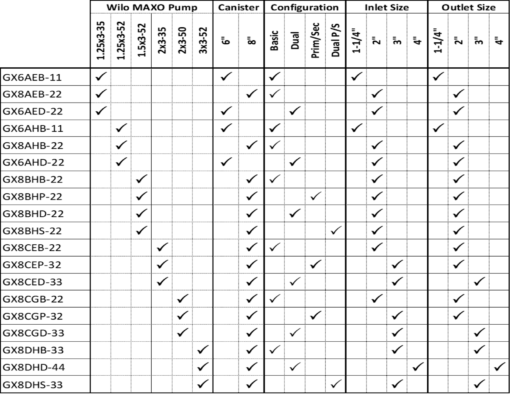

Our “S” Series (“S” is for Spaceship) utilizes dual parallel flow on both the Primary (Loop Field) and the Secondary (Heat Pumps) and provides either 100% redundancy or extra flow for those large demanding projects. The following Table illustrates the features of each available model:
